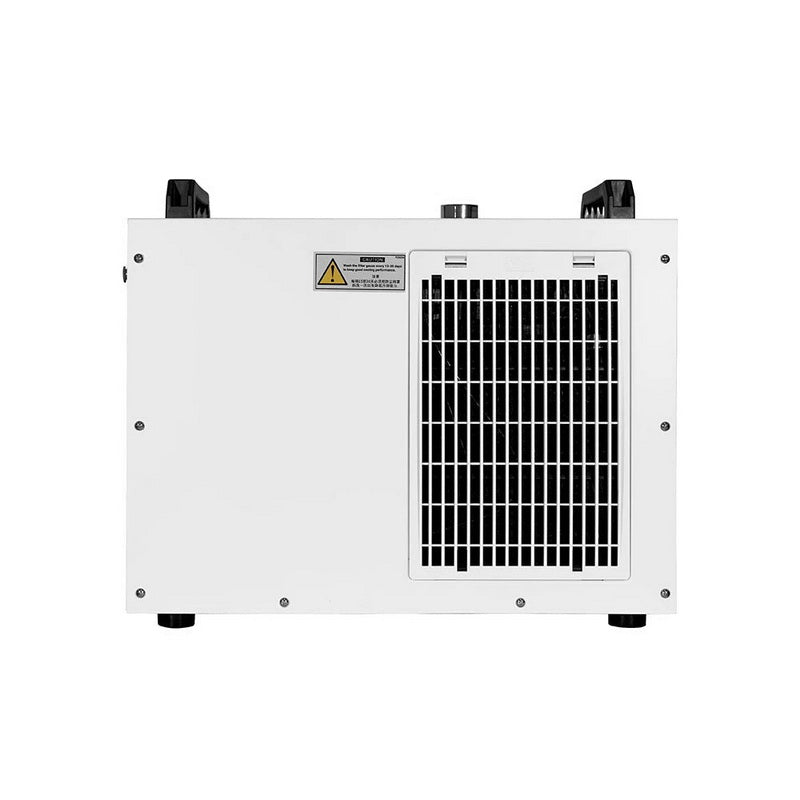

Water Chiller for CO₂ Laser Cutters - Essential cooling solution for CO₂ Laser cutting systems. This water chiller maintains optimal operating temperatures, protecting your laser tube and optics from heat damage while maximizing cutting performance and lifespan. Designed for reliable, consistent operation during extended production runs. Compact design fits standard workshop setups. Keeps your equipment running cool and your projects on schedule.

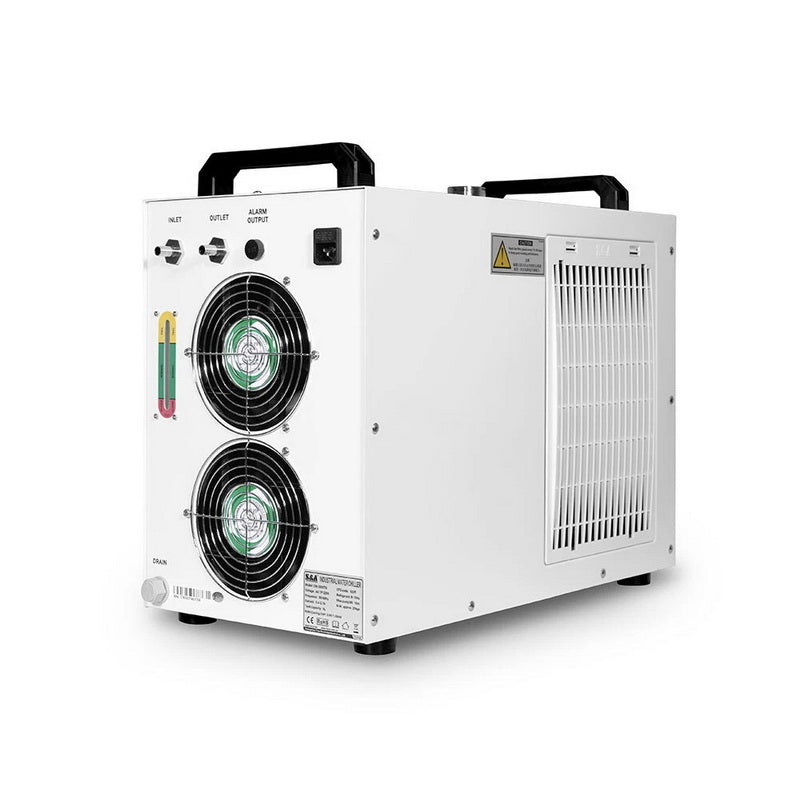

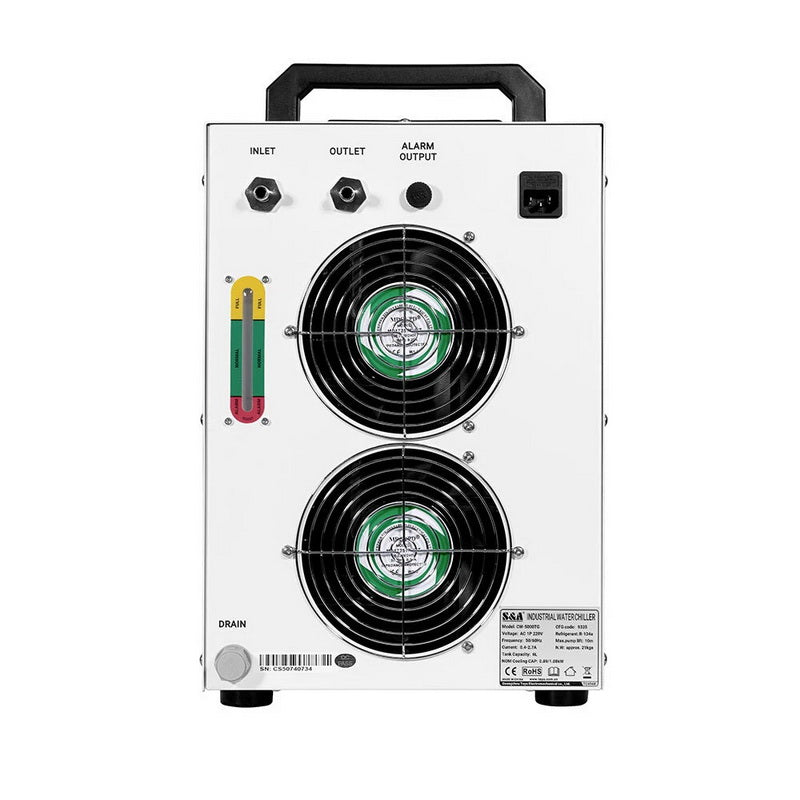

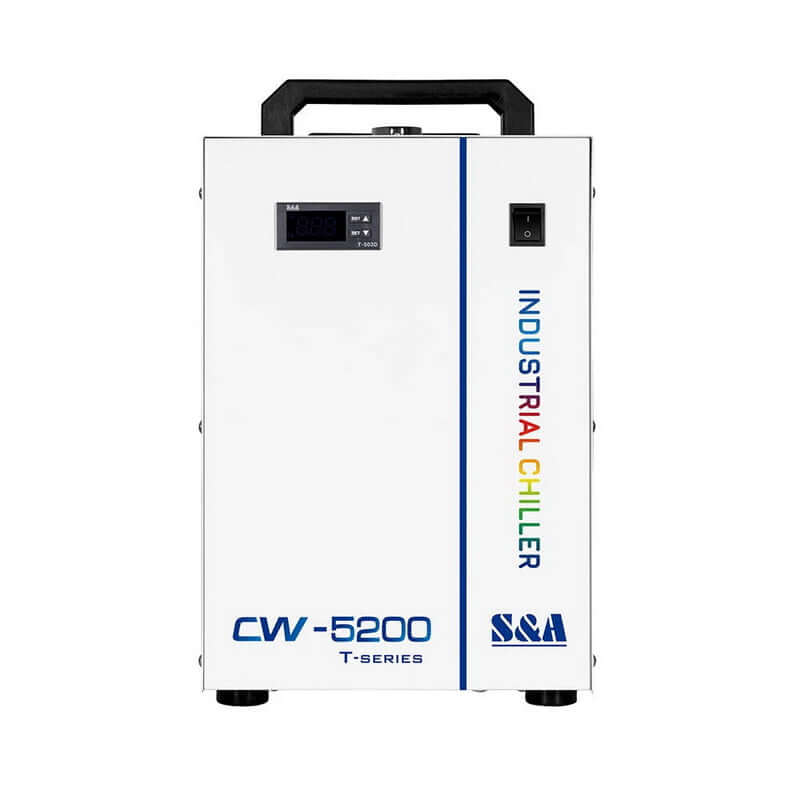

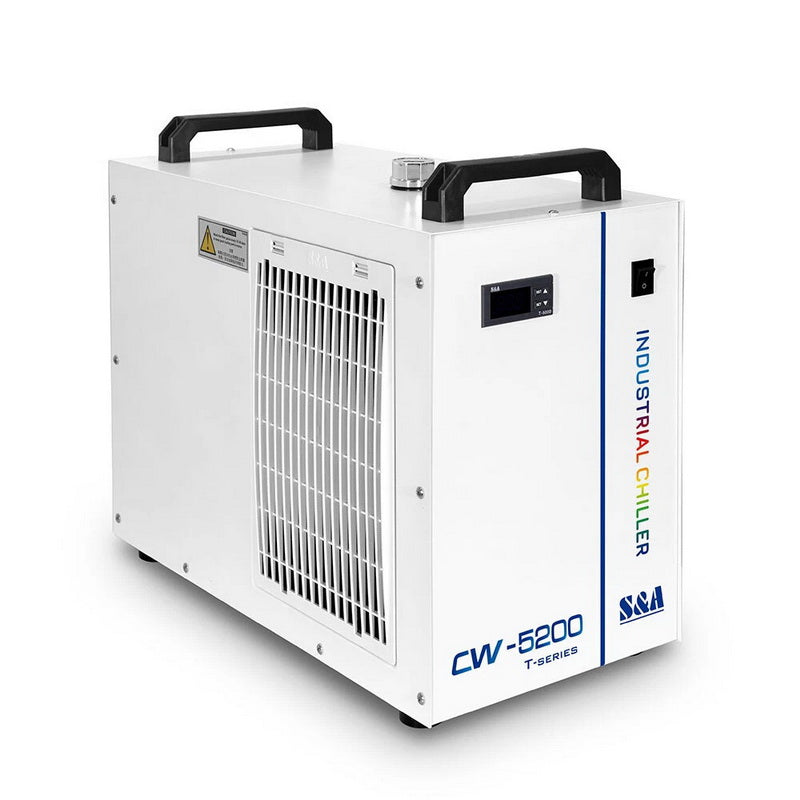

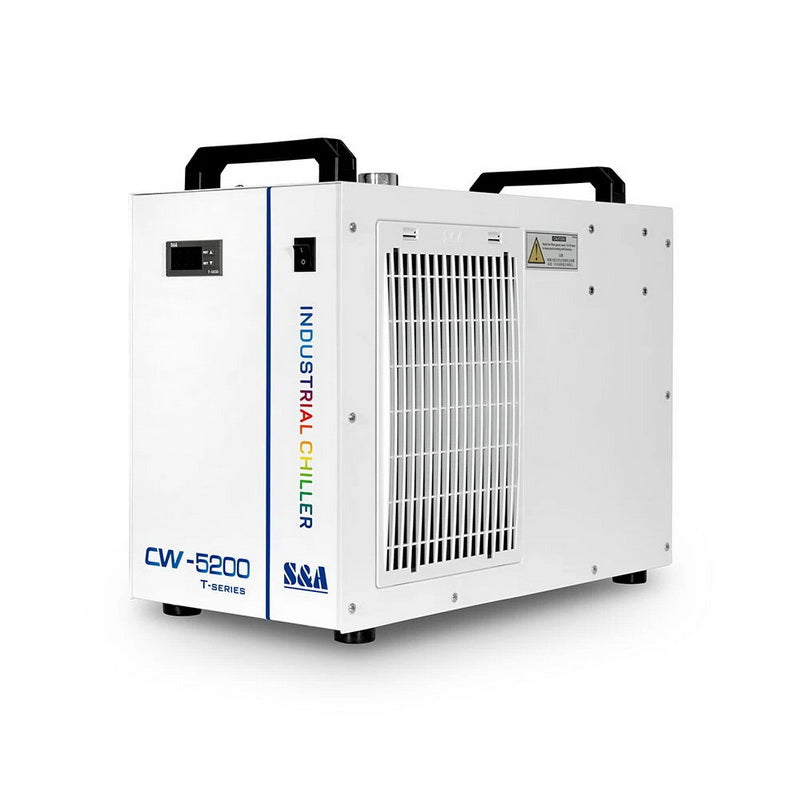

CW-5200 Features
- Cooling Capacity: 1400W
- Active cooling
- Temperature stability: ±0.3°C
- Temperature control range: 5°C ~35°C
- Refrigerant: R-407c or R-410a
- Compact, portable design and quiet operation
- High efficiency compressor
- Top mounted water fill port
- Integrated alarm functions
- Low maintenance and high reliability
- 50Hz/60Hz dual-frequency compatible available
- Optional dual water inlet & outlet
- UL certified version available

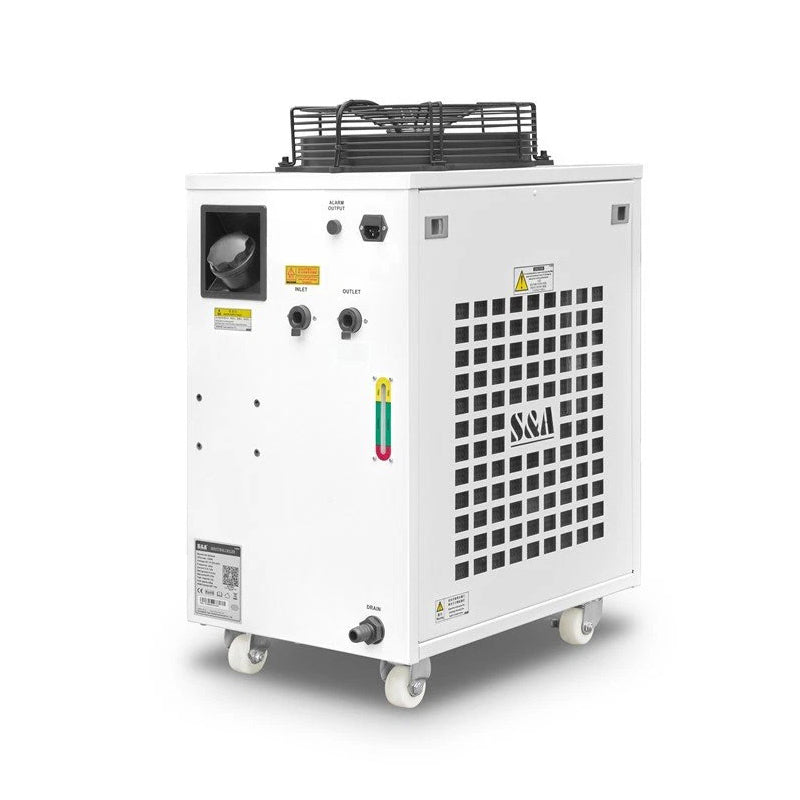

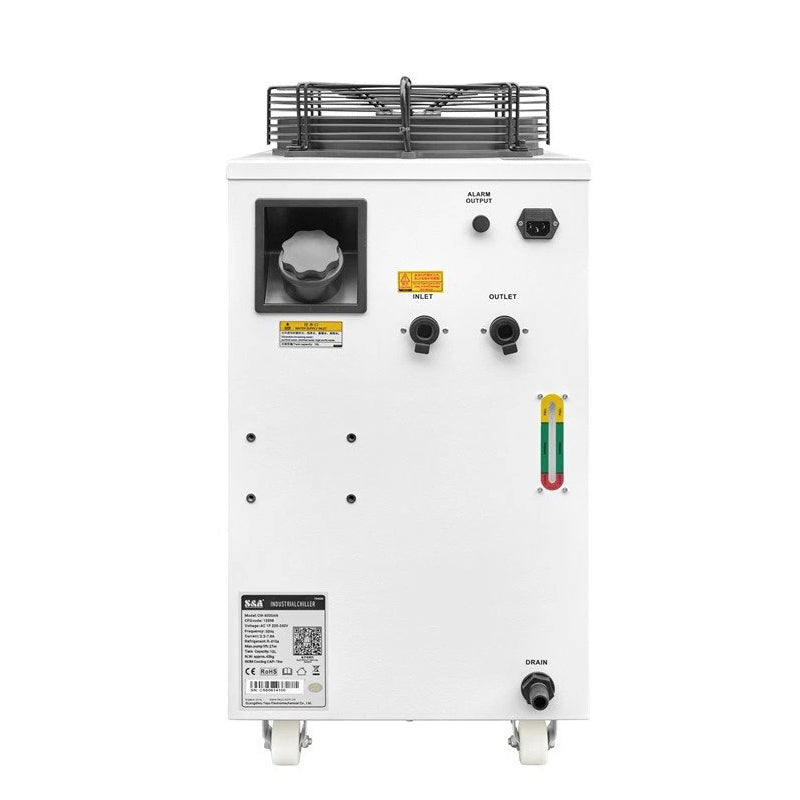

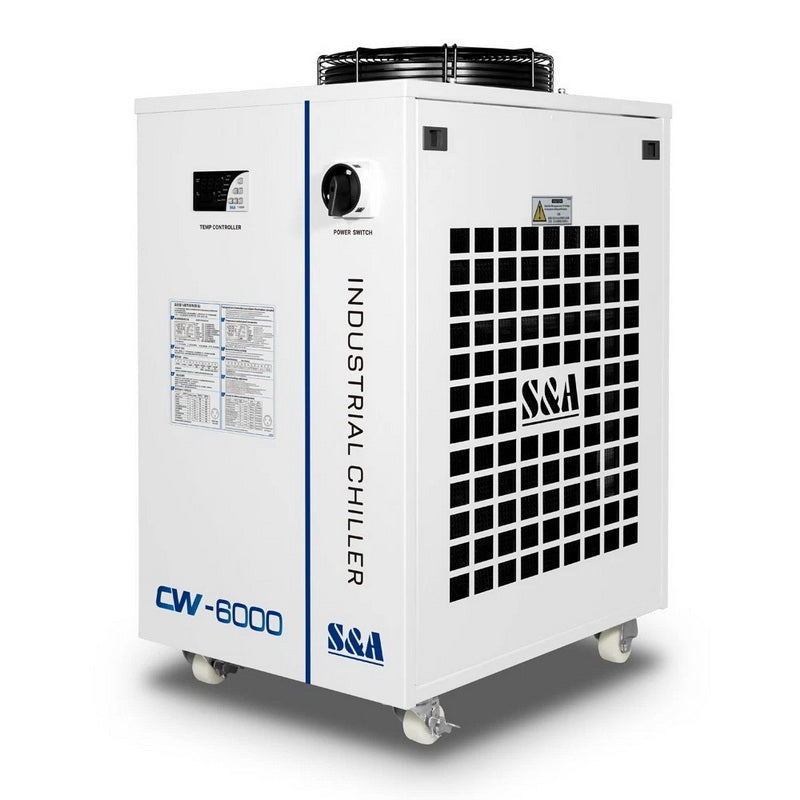

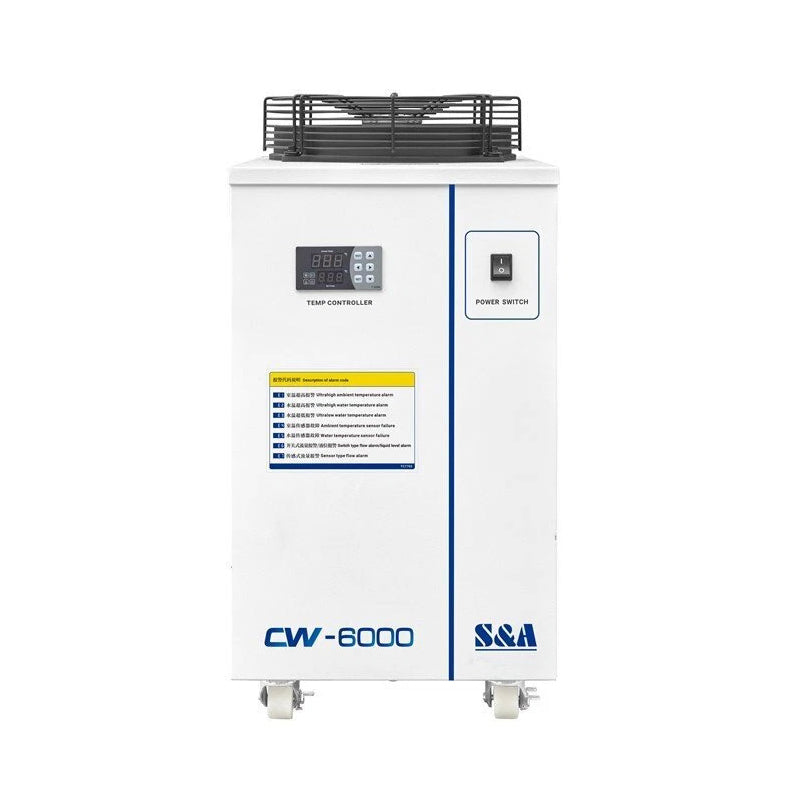

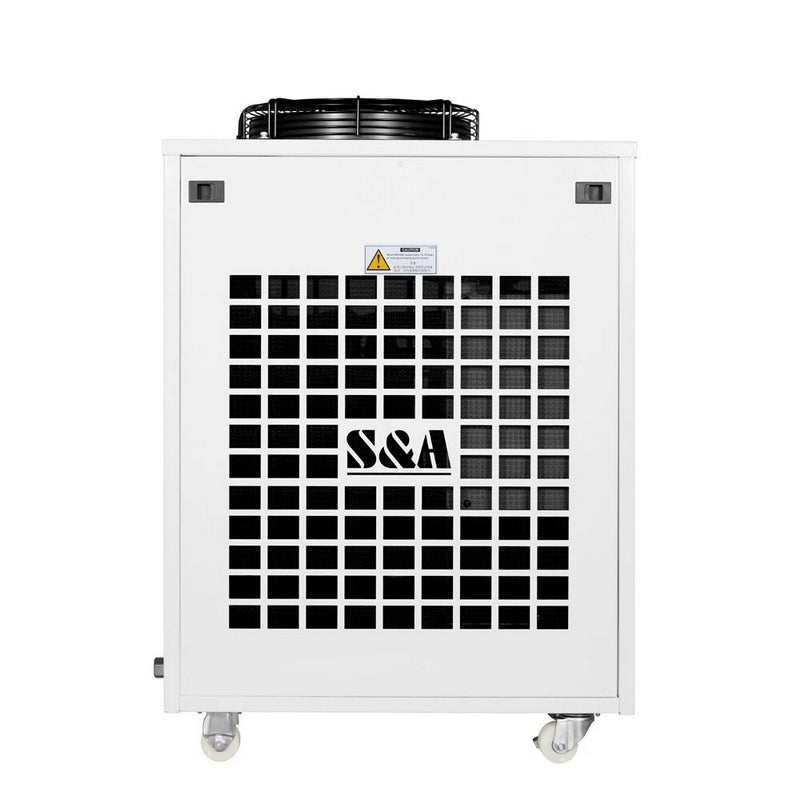

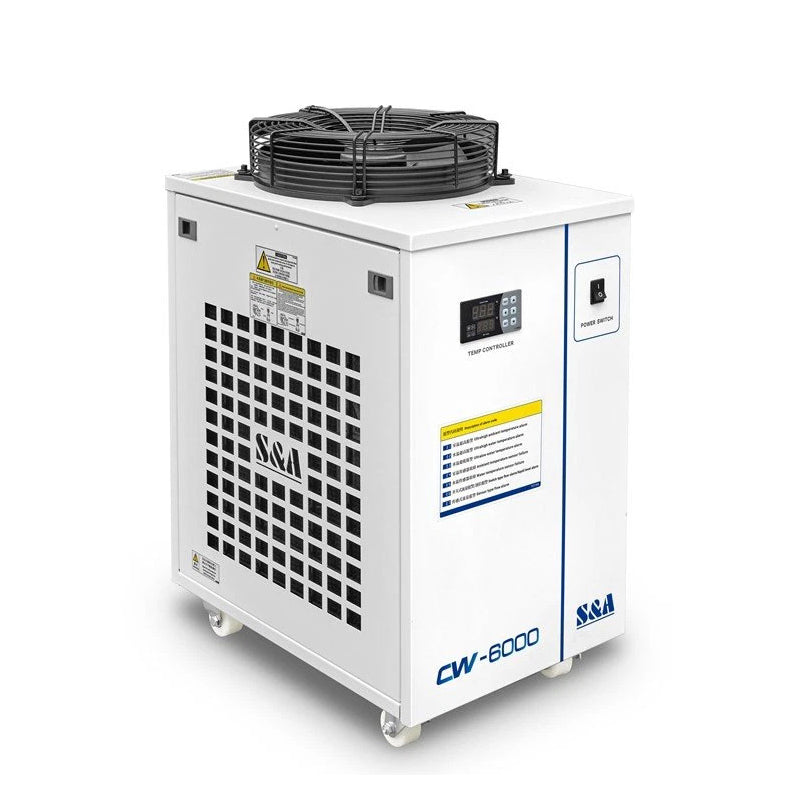

CW-6000 Features
- 3140W cooling capacity; optional environmental refrigerant.
- ±0.5℃ precisely temperature control.
- The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions.
- Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.
- Multiple power specifications; CE approval; RoHS approval.
- Long working life and simple operation.
- Optional heater and water filter.
| Model |
CW-6000BH |
| Power Supply |
AC 1P 220~240V, 60Hz |
| Current |
0.5 ~ 5.2A |
| Max. power consumption |
1.04kW |
| Compressor power |
| 0.88kW |
| 1.17HP |
| Refrigerating Capacity |
| 10713Btu/h |
| 3.14kW |
| 2699Kcal/h |
| Refrigerant |
R-410a |
| Precision |
±0.5℃ |
| Tank Capacity |
10L |
| Reducer |
Capillary |
| Protection |
Over current protection for compressor, flow alarm, over temperature alarm |
| Pump Power |
0.05kW |
| Max.flow |
13L/min |
| Pump pressure |
12m |
| Inlet and Outlet |
Rp1/2" |
| Net Weight |
35Kgs(77 lbs) |
| Gross Weight |
44Kgs(97 lbs) |
| Product Dimension |
59 x 38 x 74cm (23.2" x 15" x 29") |
| Package dimension |
66 x 48 x 92cm (26" x 19" x 36.2") |
