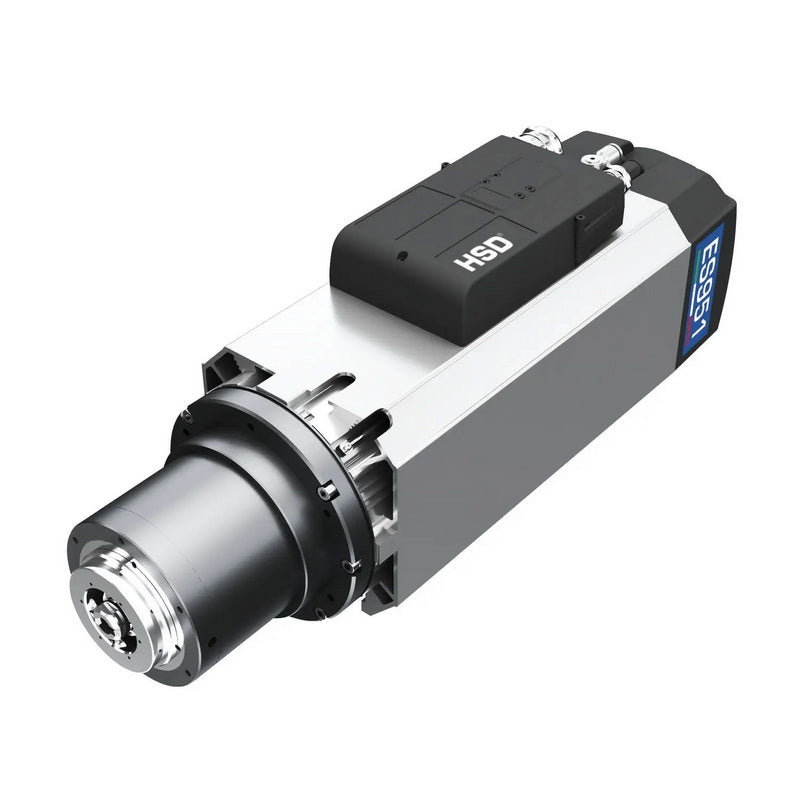

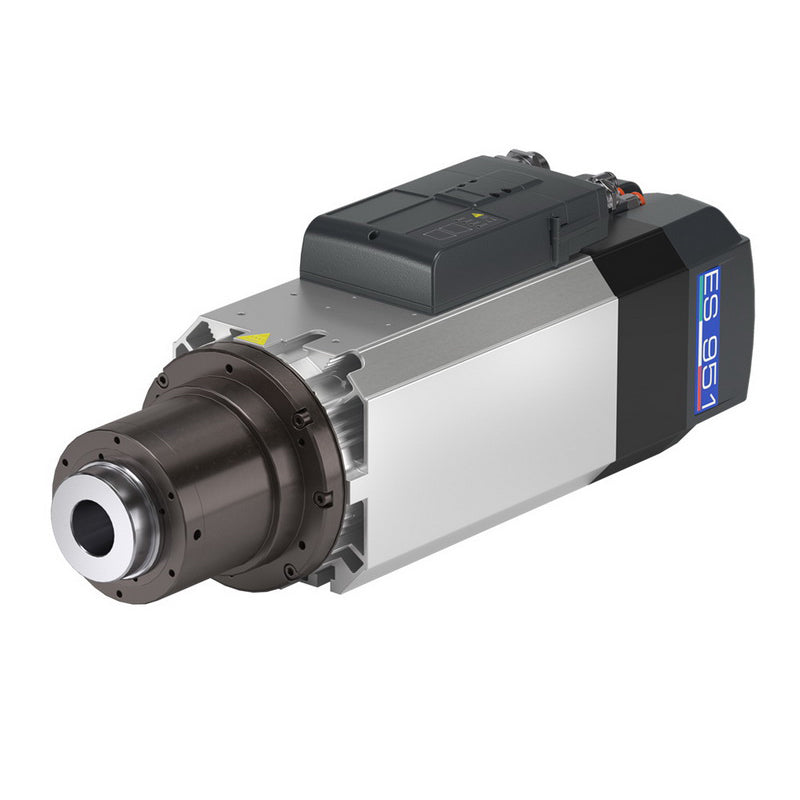

HSD Air Cooling Spindle ES951 9.5 kW

HSD Air Cooling Spindle ES951 9.5 kW

SKU:RS1007

$5,000.00
$5,000.00
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Ver todos los detalles
Description

The HSD Air Cooling Spindle ES951 9.5 kW is a high-performance automatic tool change (ATC) electro spindle designed for CNC machining, offering models from 6.5 kW up to 25 kW, speeds up to 24,000–36,000 RPM, and tool interfaces like ISO30 and HSK F63. It’s widely used for wood, composites, and aluminum machining.

The "ES951 e-core" is the first smart electronic spindle designed and manufactured for the woodworking sector. The "e-core" technology makes it possible for the Electro spindle to collect, process and store information related to its condition and transmit this information to the CNC control device.

Specifications of HSD ES951 Spindle

Feature Typical Values (varies by model)
Power (S1/S6) 6.5 kW – 25 kW
Torque (S1/S6) 3.4 – 28.6 Nm
Max Speed 18,000 – 36,000 RPM
Voltage 220 / 380 V
Frequency 800 Hz
Poles 4-pole
Tool Interface ISO30 / HSK F63 / HSK E63 / HSK F50
Cooling Electric fan (air-cooled) or liquid
Lubrication Grease
Weight ~30 kg (depending on model)
