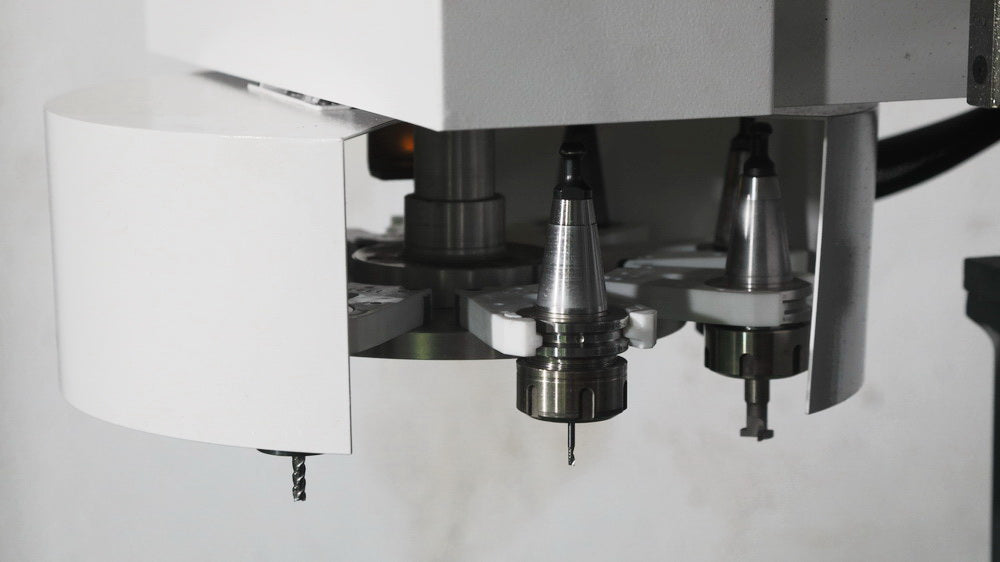

How to Choose the Right Router Bit Diameter for Your CNC Router

Choosing the right router bit diameter is one of the most important decisions you'll make when setting up a CNC routing job. The wrong size can lead to poor cut quality, broken bits, burned material, or a ruined workpiece. This guide walks you through everything you need to know about selecting the correct diameter for your application.

Why Router Bit Diameter Matters

The diameter of a CNC router bit directly affects:

• Cut width and detail resolution — smaller bits can cut finer details
• Feed rate and chip load — larger bits can handle more aggressive cuts
• Tool rigidity and deflection — larger diameters are stiffer and less prone to flex
• Spindle compatibility — your collet size must match the bit's shank diameter

The Three Most Common CNC Router Bit Diameters

1/4" (6.35mm) Router Bits — The Workhorse

The 1/4" diameter is the most popular size for general CNC routing work. It strikes the ideal balance between rigidity and versatility, making it suitable for:

• Cutting wood, MDF, plywood, and soft plastics
• Profile cuts, pocketing, and contour routing
• Sign making and general fabrication
• Cutting depths up to 1" or more in softer materials

Best for: Hobbyists and professionals doing general woodworking, sign making, and light production work.

Collet required: 1/4" ER collet (ER11, ER16, ER20, or ER25 depending on your spindle)

3/16" (4.76mm) Router Bits — The Versatile Middle Ground

The 3/16" diameter is less common but extremely useful when you need more detail than a 1/4" bit provides, without sacrificing the rigidity of smaller bits. Common applications include:

• Detailed inlay work and decorative routing
• Cutting narrow slots and channels
• Aluminum and non-ferrous metals at conservative feed rates
• Foam and soft materials where a 1/8" bit might deflect

Best for: Intermediate detail work where a 1/4" bit is too large but a 1/8" bit lacks rigidity.

1/8" (3.175mm) Router Bits — The Detail Specialist

The 1/8" diameter is the go-to choice for fine detail work, engraving, and cutting intricate shapes. Because of its smaller size, it requires more careful programming and slower feed rates. Use 1/8" bits for:

• Fine engraving and lettering
• PCB routing and electronics work
• Jewelry and small-scale model making
• Cutting thin materials like veneer and thin acrylic
• Detail passes after roughing with a larger bit

Best for: Fine detail, engraving, and applications where precision outweighs material removal rate.

Important: 1/8" bits are more fragile. Always reduce feed rates by 30–50% compared to 1/4" bits and ensure your workholding is solid.

How to Match Bit Diameter to Your Application

Consider the Smallest Feature Size

Your bit diameter must be smaller than the smallest inside corner or slot you need to cut. If your design has a 3/16" wide slot, you need a bit smaller than 3/16" — a 1/8" bit would work, but a 1/4" bit would not fit.

Consider Material Hardness

Harder materials demand more rigid tooling. When cutting aluminum, hardwood, or composites, favor larger diameters when your design allows it. A 1/4" bit cutting aluminum will outlast a 1/8" bit by a significant margin under the same conditions.

Consider Cut Depth

As a general rule, limit your cut depth to 1–1.5× the bit diameter per pass. For a 1/4" bit, that's a maximum of 0.25–0.375" per pass. For a 1/8" bit, keep passes to 0.125–0.187". Deeper cuts require multiple passes.

Consider Your Spindle's Collet Range

Your CNC spindle's collet system determines which shank sizes you can use. Most hobby and professional CNC routers use ER-style collets. Common setups:

• ER11 collets — typically hold up to 7mm (suitable for 1/8" and 3/16" bits)
• ER16 collets — hold up to 10mm (suitable for all three common sizes)
• ER20 collets — hold up to 13mm (suitable for 1/4" and larger)
• ER25 collets — hold up to 16mm (for larger production tooling)

Quick Reference: Diameter Selection Guide

Application	Recommended Diameter
General wood routing, pocketing	1/4"
Sign making, lettering (large)	1/4"
Aluminum cutting (light duty)	3/16" or 1/4"
Detailed inlay work	3/16" or 1/8"
Fine engraving, small lettering	1/8"
PCB routing	1/8" or smaller
Foam and soft materials	1/4" or 3/16"

Common Mistakes to Avoid

• Using too small a bit for the material — leads to bit breakage and poor surface finish
• Ignoring collet compatibility — always verify your collet matches the shank diameter exactly
• Running 1/8" bits at 1/4" feed rates — smaller bits require proportionally slower feeds
• Skipping a roughing pass — for deep cuts, always rough with a larger bit and finish with the detail bit
